close loop nema 17 encoder stepper motor, stepper motor with encoder

FOB Reference Price:Get Latest Price
  • >=1 Sets
    $70.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ICAN
Model Number:
SM42
Step Angle(degrees):
1.8 Degree
Holding Torque:
0.19Nm-0.68Nm
Phase:
2
Type:
Hybrid
Current / Phase:
1.2A-1.5A
Certification:
CE, ISO, ROHS
Insulation class:
B
Weight:
0.18KG
Motor length:
54-80mm
No of leads:
4
Shape:
Square
Usage:
Automatic Industry
Application:
3D Printing
Voltage:
3.9V/4.8V/5.75V/6V/12V
Diameter:
5mm
Frame:
Nema17
Supply Ability
Supply Ability:
50000 Set/Sets per Month closed loop stepper motor
Packaging & Delivery
Packaging Details
1.Carton box with foam
2.Box can be customized as you require
new design nema 23 nema 34 closed loop stepper motor, 57mm cnc parts stepper motor
Port
Shenzhen
Lead Time :
3days

close loop nema 17 encoder stepper motor, stepper motor with encoder

Why choose us?



Product Description
Naming Rule
SM4201A-1000
Series nameFlange sizeMotor lengthShalf diameterEncoder resolution



Quick Details

Step Angle(degrees): 1.8°
Flange Size: 42mm
Holding Torque: 0.19~0.68Nm
Current / Phase:1.2~1.5A
Adaptive Driver: SS42



 SM42 is nema17, SM57 is nema23, SM86 is nema34! For more, please contact us

Model NoStep Angel
(°)
Holding Torque
(Nm)
Current/phase
(A)
Motor Length
(mm)
Matched driver

SM4201A-1000AO1.80.191.254SS42
SM4202A-1000AO1.80.351.260SS42
SM4203A-1000AO1.80.461.266.5SS42
SM4204A-1000AO1.80.681.580SS42
SM5701A-1000AO 1.80.63.059SS57
SM5702A-1000AO1.81.24.274SS57
SM5703A-1000AO1.82.24.294SS57
SM5704A-1000AO1.83.04.2116SS57
SM8601A-1000AO1.83.46.088SS86
SM8602A-1000AO1.84.56.0100SS86
SM8603A-1000AO1.88.56.0138SS86
SM8604A-1000AO1.8117.0176SS86
Overall dimension

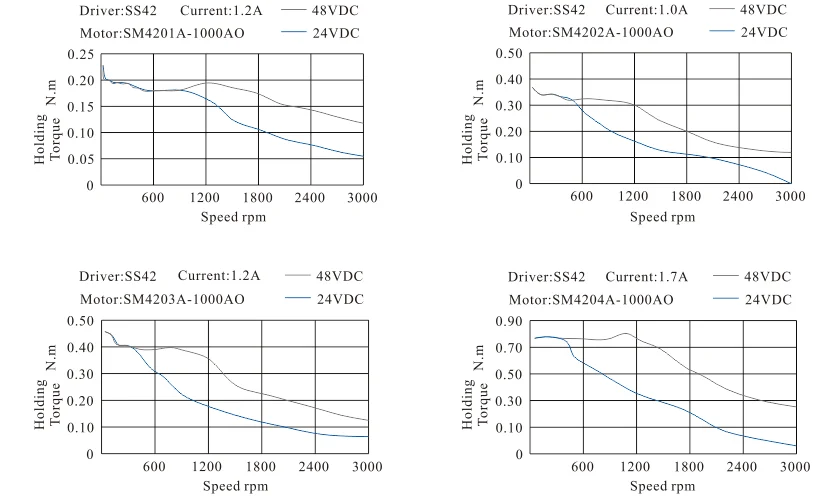

Torque Curve
